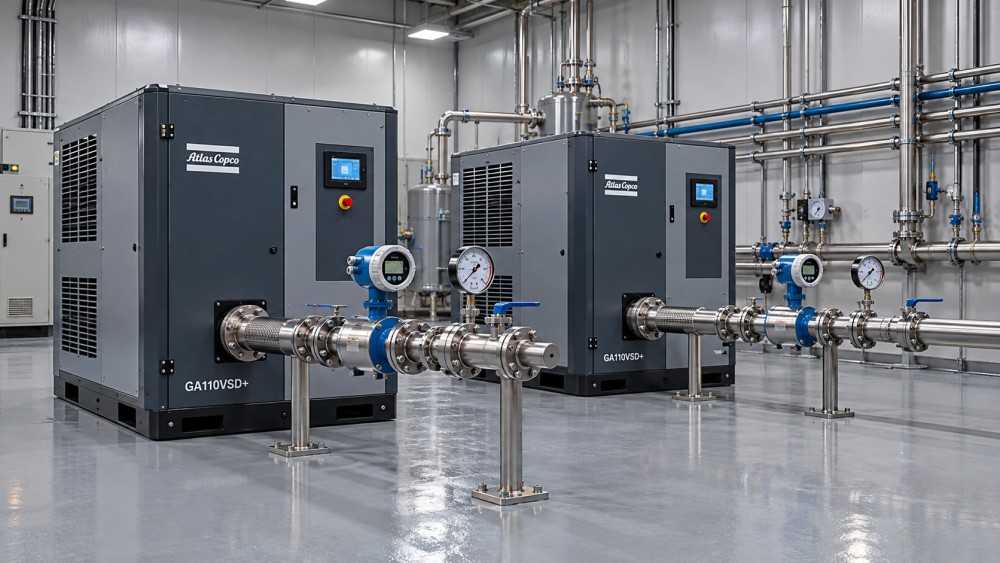

How to compare compressor flow ratings using free air delivery

To compare compressor flow ratings from different suppliers, start with free air delivery (FAD) at the same discharge pressure and on the same reference basis. A larger CFM figure does not establish that a compressor supplies more usable air. The figure may describe theoretical displacement, use different inlet conditions, or apply at a lower operating pressure.

A useful comparison connects three things: how much air the compressor delivers, the conditions under which that delivery is stated, and the total power required. Once those are aligned, you can judge whether a machine will meet plant demand and what that capacity will cost to operate.

What free air delivery tells you about compressor capacity

FAD expresses delivered airflow as an equivalent volume at specified inlet or reference conditions. Although the compressor discharges air under pressure, its capacity is expressed on a free-air basis so that the quantity of air can be compared meaningfully.

This distinction matters because air volume changes with pressure and temperature. A cubic metre of compressed air in a discharge pipe contains considerably more air than a cubic metre at atmospheric pressure. The two volumes cannot be compared directly without accounting for their conditions.

Swept displacement is a different measurement. It describes the theoretical volume moved by the compression mechanism. Leakage, valve losses, heating and other effects mean that theoretical displacement does not equal delivered capacity. A displacement rating therefore cannot substitute for a measured FAD rating in a purchasing comparison.

Also distinguish continuous compressor output from the temporary flow available from a receiver. Stored air can support a short demand peak, but it does not increase the compressor’s sustained delivery.

Make the operating pressure identical before ranking flow

Compressor capacity and power depend on discharge pressure. Comparing one supplier’s rating at a lower pressure with another supplier’s rating at a higher pressure creates an uneven comparison. The higher headline flow may disappear when both machines are evaluated at the pressure your system requires.

Define the pressure required at the compressor package outlet. This should account for the minimum pressure needed at the point of use and the pressure losses through treatment equipment, piping and controls. Avoid using the pressure at a distant machine as though it were the required compressor discharge pressure.

Ask each supplier for FAD and total package input power at that agreed operating point. If the catalogue only gives data at another pressure, request the applicable performance data. There is no universal pressure-ratio calculation that reliably converts a compressor’s rated capacity to another discharge pressure. Internal leakage, control settings and machine design affect the result.

Check pressure notation as well. Gauge pressure and absolute pressure are different quantities. Thermodynamic conversions require absolute pressure, while plant operating pressures are commonly stated as gauge pressure. A comparison sheet should identify which convention each pressure uses.

Read the reference conditions behind CFM, SCFM and FAD

Matching units is necessary, but matching units alone does not make ratings comparable. Two figures stated in m³/min can represent different quantities of air if their reference temperatures, absolute pressures or humidity bases differ.

For every quoted flow, record:

• The reference or inlet absolute pressure.
• The reference or inlet temperature.
• The humidity basis, including whether flow is expressed as dry air.
• The discharge pressure associated with the rating.
• Whether the figure is measured delivery, corrected test data or a calculated estimate.

Do not assume that “standard” and “normal” identify one universal set of conditions. Suppliers and specifications can use different definitions. The letters SCFM or Nm³/h are useful only when the accompanying reference conditions are stated.

For the same quantity of dry air, equivalent volume increases with absolute temperature and decreases with absolute pressure. This provides the basis for converting between reference states. Where humidity differs, the water-vapour contribution must also be handled consistently.

That conversion only changes how an air quantity is expressed. It does not predict how a compressor will perform in a hotter room or at a higher-altitude site. Those conditions can change inlet density, cooling performance and available capacity. Obtain site-specific performance data when installation conditions differ materially from the rating conditions.

Use ISO 1217 to examine the test basis

ISO 1217 provides acceptance-test methods for displacement compressors. A supplier’s reference to the standard is useful, but the words “tested to ISO 1217” do not answer every comparison question.

Request the applicable edition, test procedure or annex, and the scope of the reported performance. Establish whether the data describe a complete compressor package or another equipment boundary, and identify the locations used for delivery and pressure measurement. Where an independent performance verification programme covers the offered equipment, its published data can provide an additional comparison source.

The package boundary matters because equipment between the compression element and the usable outlet can consume power, create pressure losses or remove air from the delivered stream. An element-level figure and a complete-package figure may both be technically valid while answering different purchasing questions.

The same care applies to power. Motor nameplate output is not the compressor package’s measured electrical input. A useful energy comparison includes the electrical loads inside the agreed boundary, such as the main drive, cooling fans and relevant auxiliaries. If one offer includes a dryer and another does not, show the dryer’s energy separately or include equivalent treatment in both comparisons.

Check tolerances before treating a small difference as decisive

Ask whether the quoted flow is nominal, a tested value, or a contractual minimum. Obtain the applicable flow and power tolerances and the acceptance criteria that will govern the purchase.

A small difference between catalogue ratings may be less meaningful than the uncertainty and permitted variation behind those ratings. If production depends on a minimum sustained airflow, use the guaranteed delivery under the specified conditions as the selection basis. A nominal figure alone does not establish that minimum.

Performance guarantees should connect flow and power at the same operating point. Separate promises of maximum delivery and minimum power can be misleading if they apply under different conditions.

Compare energy performance at the flow you will use

Once pressure, reference conditions and measurement boundaries match, calculate specific power:

Specific power = total package electrical input ÷ FAD

With power in kW and flow in m³/min, the result is expressed in kW per m³/min. A lower value means less electrical input for each unit of delivered capacity at that operating point.

Specific power is useful only alongside sufficient capacity. A machine with an attractive ratio may still be too small for the required demand, while an oversized machine may spend much of its operating time in an inefficient control state.

Compare fixed-speed machines at full load and examine how they operate when demand falls. During unloaded operation, a compressor can consume electricity while supplying little or no useful air. The full-load ratio does not capture that operating cost.

For variable-speed compressors, request flow and package power across the expected operating range, including minimum continuous delivery. Efficiency changes with speed, and operation below the controllable range may introduce cycling or other control behaviour. A single full-load value cannot describe performance across a variable plant load.

If demand varies substantially, use a measured demand profile to compare expected energy consumption. Apply each machine’s power data to the time spent at each operating condition. For multiple-compressor systems, include sequencing and the role of the trim machine; individual equipment ratings do not describe the performance of the whole installation.

Check how much of the rated air reaches production

Package FAD and usable plant air are related, but they are not always equal. Air treatment, distribution leaks and other consumers can reduce the capacity available to production.

For example, a desiccant dryer that regenerates using compressed air takes part of the supply for that purpose. The relevant amount depends on dryer design and operating conditions. A refrigerated dryer adds electrical demand and pressure loss, which belong in the system comparison even though its operating principle differs.

Set the delivery boundary explicitly: compressor outlet, treatment-system outlet or plant header. If suppliers propose different treatment arrangements, compare them at a common downstream boundary with the required air quality and pressure.

Plant demand measurements also need a defined basis. A flow meter may report actual volume, standardised volume or another configured reference condition. Align that basis with the compressor ratings before deciding whether the quoted capacity covers demand.

Distinguish sustained demand from short peaks. Receiver storage can bridge a brief event when its usable pressure range and recharge time are adequate. A sustained production increase requires sufficient continuous capacity. Treat leakage reduction, future expansion and standby requirements as separate allowances so that the same margin is not added repeatedly.

Build a comparison sheet that supports a purchase decision

Give suppliers one operating specification and ask them to return data against it. A compact comparison sheet should contain the following fields:

• Duty: required continuous flow, demand profile, discharge pressure and site inlet conditions.
• Delivery basis: FAD, reference temperature, absolute pressure and humidity basis.
• Test basis: applicable ISO 1217 procedure, equipment boundary and measurement locations.
• Energy: package input power at the required duty and relevant part-load points.
• System deductions: treatment air consumption, pressure losses and auxiliary energy.
• Commercial acceptance: guaranteed minimum flow, power limits, tolerances and acceptance conditions.

Keep missing information visible rather than filling gaps with assumptions. A supplier offering a large unqualified CFM figure has not yet provided the same evidence as one supplying documented package FAD and power at the required pressure.

The practical selection order is to establish adequate guaranteed capacity, confirm compatibility with site conditions and air-quality requirements, then compare energy across the expected duty. Maintenance access, service support and redundancy can then be assessed alongside the technical result.

Before placing an order, make the agreed operating point and performance boundary part of the purchase specification. That turns a collection of catalogue figures into a reviewable commitment: a defined quantity of air, delivered at the required pressure, within an agreed electrical input.
